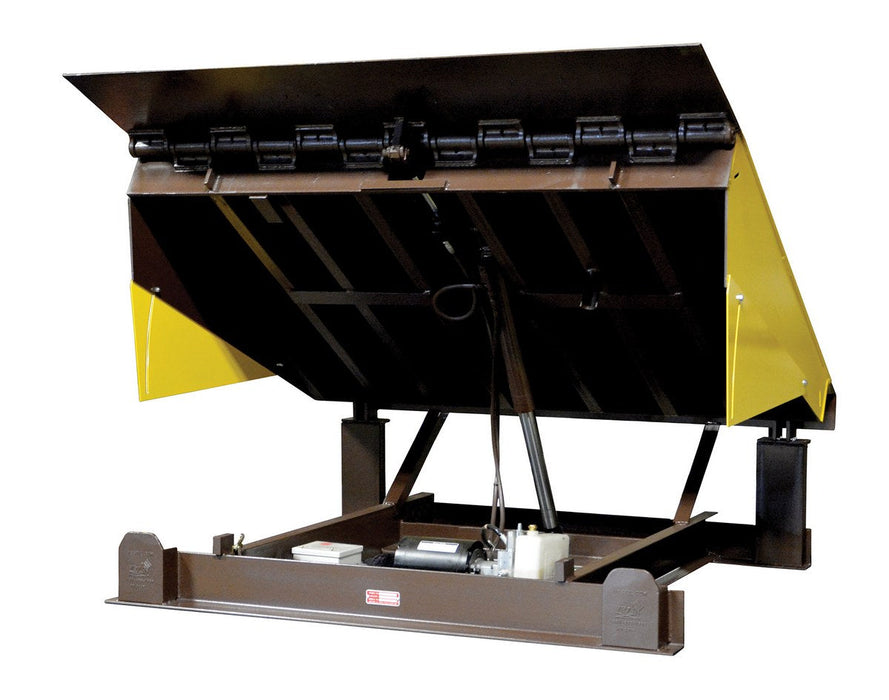

Vestil Electric Hydraulic Dock Leveler 72"W x 62"L x 23-1/2"D Pit Dimensions, 50000 Lb. Capacity Brown/Yellow

The Electric Hydraulic Dock Leveler is ideal for high usage dock areas. The hydraulic design is state of the art and consists of a simple push of the button operation. The operator pushes and holds the "raise" button which activates the hydraulic pump and raises the deck. When the deck reaches the raised position the lip automatically extends. The operator releases the "raise" button and the deck descends to rest on the trailer. The control box includes a red emergency stop button standard. When the truck pulls away, the deck descends to full down position, trips the limit switch and returns automatically to the level cross traffic position. Includes telescopic steel toe guards on both sides, flush with platform edge, service range of +/- 12" and two (2) laminated bumpers. 460V 3-Phase standard. Uniform capacities available up to 80,000 pounds, contact factory.

• Hydraulic design is state of the art with simple push button operation
• When the deck is raised lip automatically extends for easy loading/unloading
• Control box includes a red emergency stop button for optimal safety
• Features telescopic steel toe guards on both sides for added safety

Steel Electric Hydraulic Dock Leveler 72"W x 62"L x 23-1/2"D Pit Dimensions, 50000 Lb. Capacity Brown/Yellow
