Name: Vestil Aluminum Economizer Dockplate
Brand: Vestil
SKU: E-3024
Price: 299.9 USD
Availability: InStock

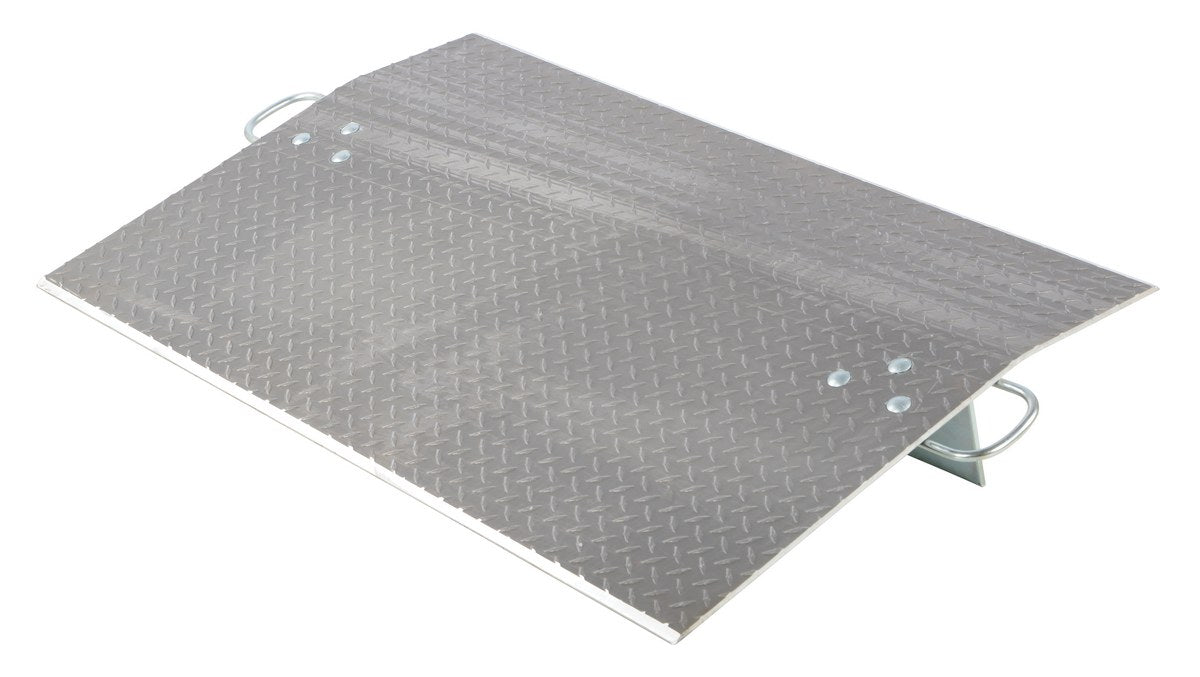

Aluminum Economizer Dockplates are an economical way to speed up truck loading and unloading.

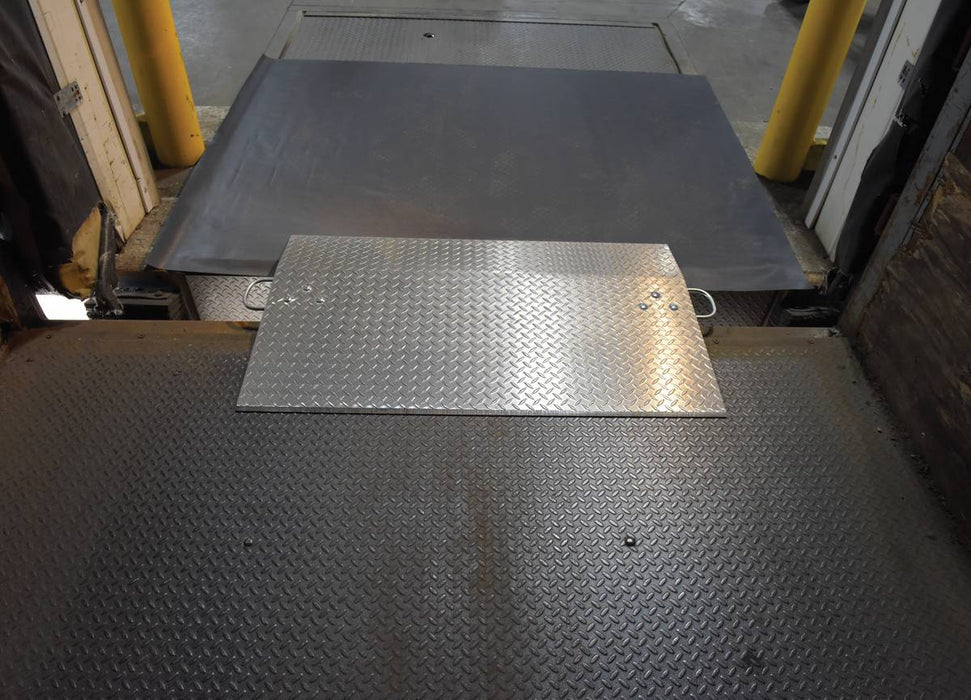

Spans the opening between the dock and trailer to allow pallet or hand trucks, along with pedestrian traffic to safely move in and out of the trailer. The dockplate is constructed of high strength, non-skid aluminum alloy tread plate. The lightweight design with bolt-on zinc plated legs and handles on each side makes portability easy. Locking legs for OSHA compliance. The bend or crown is 11 degrees and located 9" from edge of dockplate. Not for use with fork trucks.

Sturdy design is ideal for foot traffic, hand trucks and pallet trucks (not for use with fork trucks)
High-strength aluminum tread plate material is durable yet lightweight

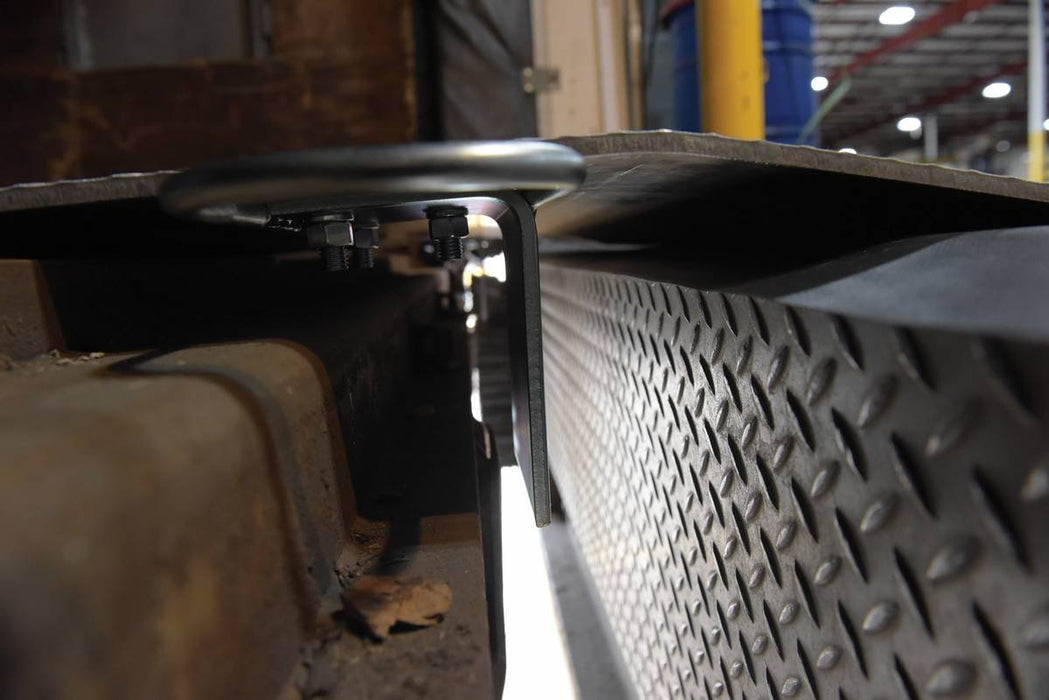

Zinc-plated locking legs and lifting handles are OSHA compliant
Beveled entrance and exit edges allow for smoother transition

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Aluminum Economizer Dockplates
Model	Plate (WxL)	Height Differential	Ships Via	Capacity (lbs)	Wt. (lbs.)
3/8" Plate Thickness
E-3024	30"x24"	3"	UPS	3,000	23
E-3030	30"x30"	4"	UPS	2,300	40
E-3036	30"x36"	5"	UPS	1,800	34
E-3048	30"x48"	7"	UPS	1,400	56
E-3624	36"x24"	3"	UPS	3,600	54
E-3630	36"x30"	4"	UPS	3,000	34
E-3636	36"x36"	5"	UPS	2,500	67
E-3648	36"x48"	7"	UPS	1,900	69
E-4224	42"x24"	3"	UPS	4,300	32
E-4230	42"x30"	4"	UPS	3,300	64
E-4248	42"x48"	7"	UPS	2,100	66
E-4824	48"x24"	3"	UPS	5,200	37
E-4830	48"x30"	4"	UPS	4,100	50
E-4836	48"x36"	5"	UPS	3,500	71
E-4842	48"x42"	6"	LTL	3,000	81
E-4848	48"x48"	7"	LTL	2,600	91
E-4854	48"x54"	8"	LTL	2,200	102
E-4860	48"x60"	9"	LTL	1,800	112
E-6024	60"x24"	3"	UPS	5,700	60
E-6030	60"x30"	4"	LTL	4,600	72
E-6036	60"x36"	5"	LTL	4,100	75
E-6042	60"x42"	6"	LTL	3,500	107
E-6048	60"x48"	7"	LTL	2,900	119
E-6054	60"x54"	8"	LTL	2,400	127
E-6060	60"x60"	9"	LTL	2,000	136
E-7224	72"x24"	3"	LTL	6,500	84
E-7230	72"x30"	4"	LTL	5,400	92
E-7236	72"x36"	5"	LTL	4,300	100
E-7248	72"x48"	7"	LTL	3,400	138
1/2" Plate Thickness
EH-3024	30"x24"	3"	UPS	5,200	30
EH-3030	30"x30"	4"	UPS	4,100	38
EH-3036	30"x36"	5"	UPS	3,500	47
EH-3048	30"x48"	7"	UPS	2,600	59
EH-3624	36"x24"	3"	UPS	6,200	37
EH-3630	36"x30"	4"	UPS	5,100	48
EH-3636	36"x36"	5"	UPS	4,300	71
EH-3648	36"x48"	7"	UPS	3,000	77
EH-4224	42"x24"	3"	UPS	7,200	44
EH-4230	42"x30"	4"	UPS	5,900	55
EH-4248	42"x48"	7"	LTL	3,500	67
EH-4824	48"x24"	3"	UPS	8,200	41
EH-4830	48"x30"	4"	LTL	6,300	73
EH-4836	48"x36"	5"	LTL	5,300	89
EH-4842	48"x42"	6"	LTL	4,300	103
EH-4848	48"x48"	7"	LTL	3,800	118
EH-4854	48"x54"	8"	LTL	3,300	133
EH-4860	48"x60"	9"	LTL	2,900	153
EH-6024	60"x24"	3"	LTL	10,000	78
EH-6030	60"x30"	4"	LTL	7,800	88
EH-6036	60"x36"	5"	LTL	6,600	109
EH-6042	60"x42"	6"	LTL	5,500	127
EH-6048	60"x48"	7"	LTL	4,800	146
EH-6054	60"x54"	8"	LTL	4,100	159
EH-6060	60"x60"	9"	LTL	3,700	177
EH-7224	72"x24"	3"	LTL	11,900	87
EH-7230	72"x30"	4"	LTL	9,500	106
EH-7236	72"x36"	5"	LTL	7,800	129
EH-7248	72"x48"	7"	LTL	5,900	173

Vestil Aluminum Economizer Dockplate

Aluminum Economizer Dockplates are an economical way to speed up truck loading and unloading.
